Customization Hazelnut Pumpkin Seeds Circulation System Dry Distillation Charcoal Stove

Model NO. : MC-T-160

Structure : Horizontal

Name : Dry Distillation Charcoal Biomass Briquettemachine

Condition : New

Weight (Kg) : 3000

Effective Volume : 5 Cubic Metre

Dimension : 2850*2100*2100 mm

Core Components : Pressure Vessel

Advantage : Energy Saving Low Residual

Color : Customized

Application : Manufacturing Industry

Usage : Making Charcoal

Processing Types : Carbonization

Voltage : 380 V or Customized

Transport Package : Standard Export Wooden Case Packing or Container

Specification : 3000*2100*2100 mm

Trademark : MC

Origin : China Zhengzhou

HS Code : 8477800000

Supply Ability : 4000 Kg/24 H

Package Size : 285.00cm * 210.00cm * 210.00cm

Package Gross Weight : 230.000kg

After-sales Service : 24 Hours Online

Warranty : 1 Year

Smokeless or Not : No

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Packaging Details : Wooden Box

Delivery Time : Peak Season Lead Time: 6-12 months Off Season Lead Time: 3-6 months

Payment Terms : LC, T/T, PayPal, Western Union

Contact Now

Hazelnut Pumpkin Seeds Circulation System Stove Dry Distillation Charcoal Biomass Briquette Machine
Indroduction:
New designed carbonization furnace.It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance. Shunt can also dry burning boiler flue gas and so on. Truly the charcoal, gas and oil range of equipment is currently the world's most advanced carbonization furnace.Energy conservation and environmental protection.
Customization Hazelnut Pumpkin Seeds Circulation System Dry Distillation Charcoal Stove

Working principle

1.Anoxic carbonization, carbonization of raw materials at a certain temperature, producing combustible gas for carbonization and drying.

2. The pyrolyzed material needs to be cooled by a cooling system in order to solidify and form biochar.

3. Finally, the cooled biochar and the gas and liquid byproducts produced during the process are collected for further use and treatment.

Customization Hazelnut Pumpkin Seeds Circulation System Dry Distillation Charcoal Stove

Detail Images
1.Wide range of materials, materials within 15mm can be carbonized by continuous carbonization furnace. The combustible gases such as carbon monoxide, methane and oxygen are recovered, purified and recycled, which will not pollute the environment.
2.On the inner wall of the furnace, the highest temperature is 500 degrees, the lowest temperature is 300 degrees, and the temperature is 50 degrees when the final product is completed.
3.Observation port,burning Chamber.
4.Ignition port.
Customization Hazelnut Pumpkin Seeds Circulation System Dry Distillation Charcoal Stove

Applicable materials
The charring machine is mainly used for charring wood, bamboo, fruit trees, branches, peanut shell, coconut shell, fruit shell, nut shell, rice shell, crop straw and other biomass materials to produce biochar.
Customization Hazelnut Pumpkin Seeds Circulation System Dry Distillation Charcoal Stove

Final product
Customization Hazelnut Pumpkin Seeds Circulation System Dry Distillation Charcoal Stove

Model	Capacity	Dimension	Wight	Inner Pot Diameter	Inner Pot Length	Volume	Carbonization
MC-T-90	1200Kg/24H	2.41.21.7 m	1.2 t	1 m	2.1 m	1.5 m³	5-7 hours
MC-T-120	2000Kg/24H	2.81.51.9 m	1.6 t	1.2 m	2.5 m	3 m³	5-7 hours
MC-T-160	4000Kg/24H	2.852.12.1m	3 t	1.5 m	2.2 m	5 m³	5-7 hours
MC-T-180	7000Kg/24H	4.52.12.1 m	3.5 t	1.7 m	4.4 m	9 m³	5-7 hours
MC-T-200	11000 Kg/24H	5.42.22.2 m	6.8 t	1.9 m	5.3 m	13 m³	5-7 hours

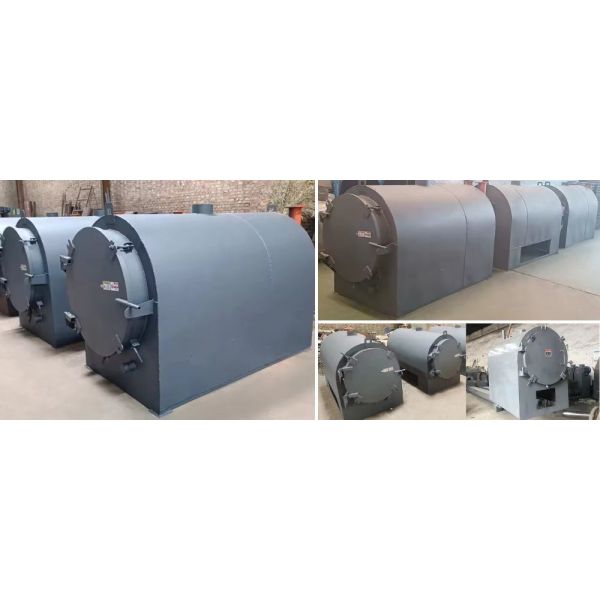

Product Display

The carbonization furance can be used for wooden box packaging and LCL transportation. Can also be shipped in containers. We will ship to the customer's designated port within the designated time.
Customization Hazelnut Pumpkin Seeds Circulation System Dry Distillation Charcoal Stove

Henan Mingchuang Machinery Manufacturing Co., Ltd. is a professional supplier of crushing, sorting, drying equipment, environmental protection machinery. With 18 years of experience in machinery and equipment processing, The production of multifunctional shredder machine, metal crusher, plastic crusher washing line ,copper granulator recycling equipment, etc.
we can provide highly customized solutions according to customers' needs, and win the recognition of industry users with advanced technology and excellent product quality. For a long time, we always adhere to the road of globalization,we have exported to Central Asia, Southeast Asia, South America,and other more than 130 countries and regions.
Customization Hazelnut Pumpkin Seeds Circulation System Dry Distillation Charcoal Stove FAQ
1,How do I get the right device for my needs?
Tell me what are your raw materials? Wood, bamboo, coconut shell, straw, peanut shell, nut shell, fruit shell, etc. and more?
What is the approximate size of the raw material in millimeters? Describe the shape of the raw material.
How many kilograms of raw materials are processed per hour? Capacity 50-150kg or 200-400kg?
What is the final product? Biochar and carbon material

2,Why choose us?
We are a supplier with 15 years of production experience, can support customized equipment according to your requirements, no intermediate traders to earn the difference, equipment support pre-shipment testing services, complete delivery services and installation operation guidance, one-year shelf life, support factory training guidance services, etc.
Customization Hazelnut Pumpkin Seeds Circulation System Dry Distillation Charcoal Stove
